Magnetic Sheet Lifters - Double Magnet

magnetic-sheet-lifter-double-magnetmagnetic-sheet-lifter-double-magnet

request-quote1 pdf

We are Manufacturer, Supplier, Exporter of Magnetic Sheet Lifters - Double Magnet and our setup is situated in Pune, Maharashtra, India.

Purpose

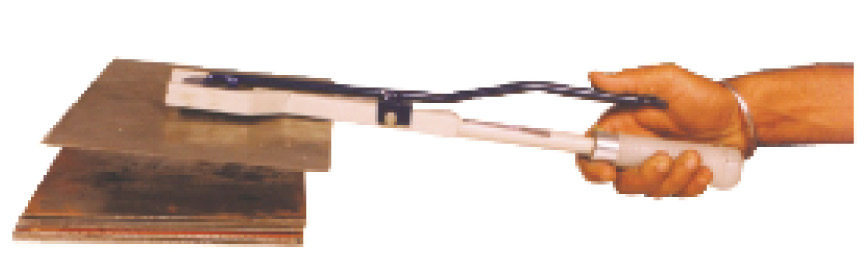

Magnetic Sheet lifter is a device, which is used for loading and unloading of small sheet OR components in press machine’s die. Especially this device has been designed for safety of press machine operator.

Construction

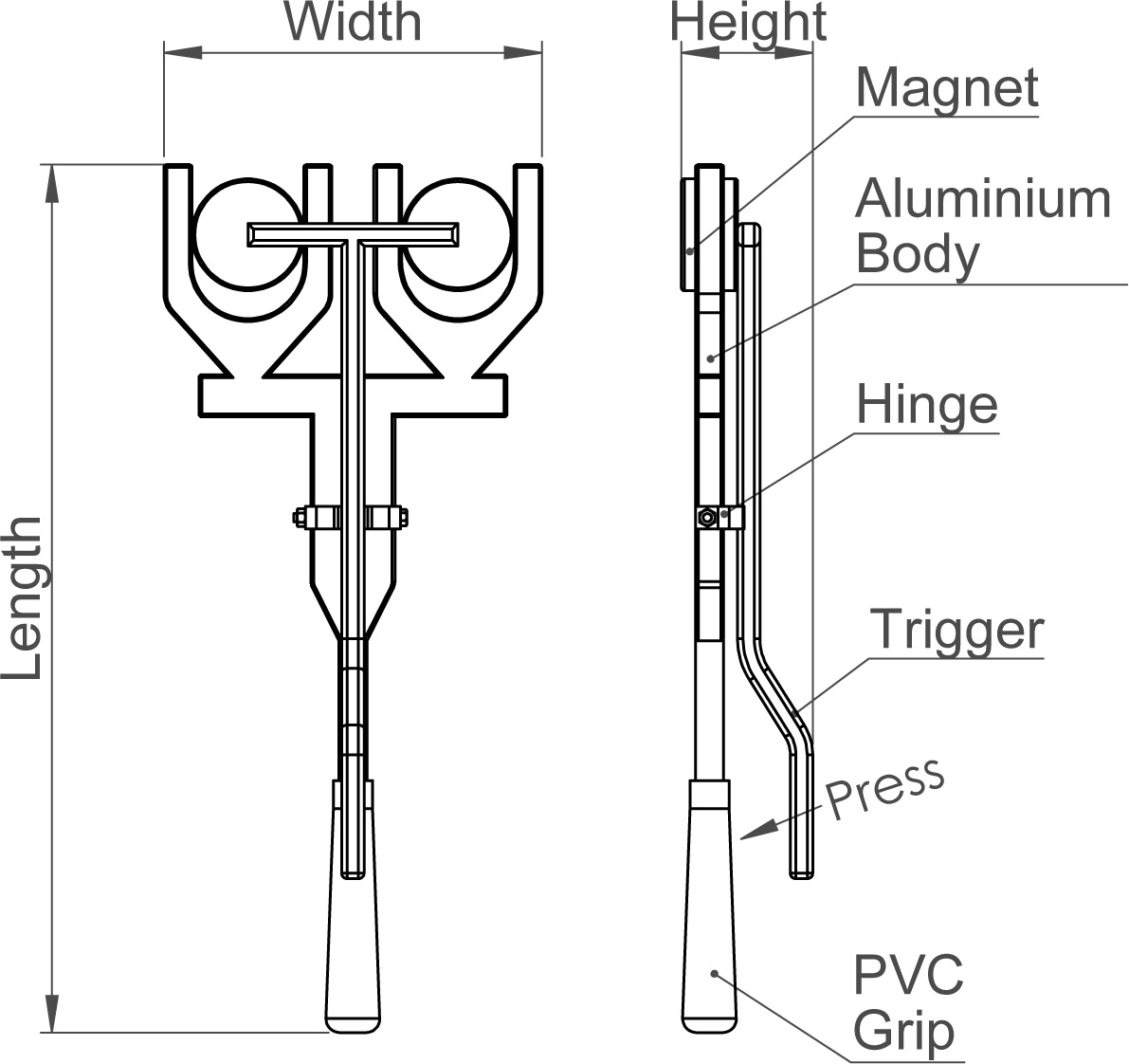

It consist powerful permanent magnets, Mild Steel, Aluminium, PVC handle etc.

Advantages

  • Avoiding the accident.
  • Fatigue reduces of operator (save energy)
  • Increasing productivity.
  • No Electricity is required.
  • Absolutely environmentally friendly (No gases chemicals generated)
  • No maintenance is required.

Area of Application : All press shops.

Available Sizes

Model Code Nominal Size ( mm )
033-03-01 L300 x W60 x Thick 20mm
Double magnet Dia. 25mm
