We are Manufacturer, Supplier, Exporter of Parallel Blocks and our setup is situated in Pune, Maharashtra, India.
Purpose

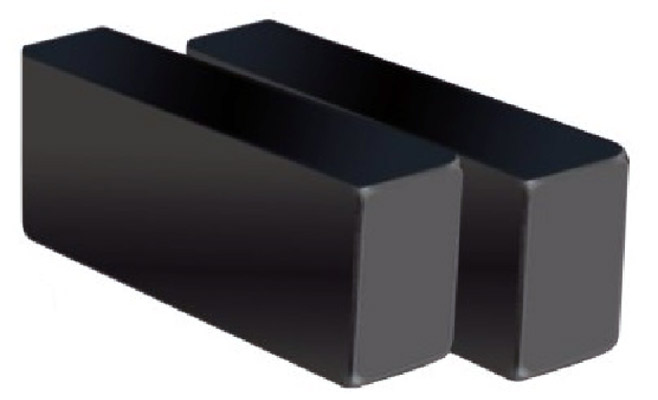

Parallel blocks are made by special quality steel it is hardened and ground, the hardness is 55-60R.C. all four sides are chamfered, its precision instrument. Accuracy for flatness, parallelism and squarness within 5 microns.
Construction
It made by alloy steel with case hardening.
Advantages
Area of application
All tool room / standard room, Machine shop etc.
Available Sizes

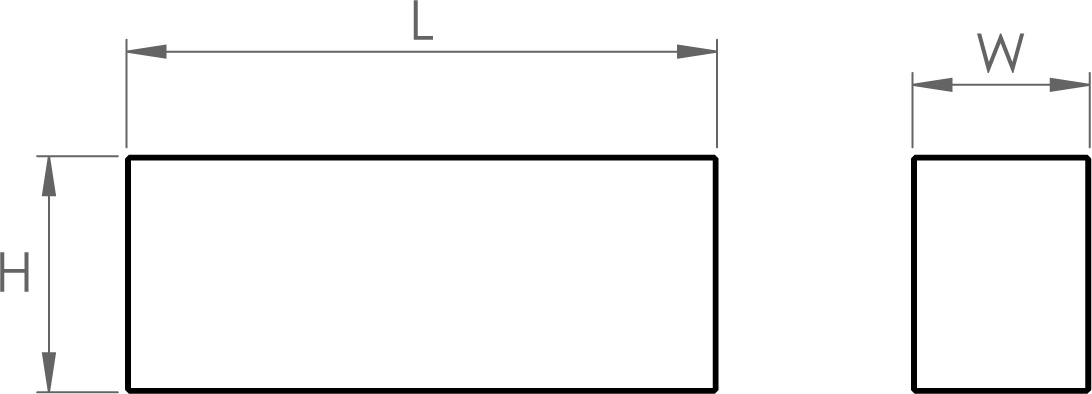

| Model Code | Size ( L x W x H ) | Model Code | Size ( L x W x H ) |
| 028-01-01 | 100 x 5 x 10 mm | 028-01-10 | 150 x 10 x 12 mm |
| 028-01-02 | 100 x 5 x 12 mm | 028-01-11 | 150 x 10 x 15 mm |
| 028-01-03 | 100 x 5 x 15 mm | 028-01-12 | 150 x 10 x 20 mm |
| 028-01-04 | 100 x 5 x 20 mm | 028-01-13 | 150 x 15 x 15 mm |
| 028-01-05 | 150 x 6 x 10 mm | 028-01-14 | 150 x 15 x 20 mm |
| 028-01-06 | 150 x 6 x 12 mm | 028-01-15 | 150 x 15 x 25 mm |
| 028-01-07 | 150 x 6 x 15 mm | 028-01-16 | 150 x 15 x 30 mm |
| 028-01-08 | 150 x 6 x 20 mm | 028-01-17 | 150 x 15 x 20 mm |
| 028-01-09 | 150 x 6 x 10 mm |
We also manufacture specific required sizes
