Application :

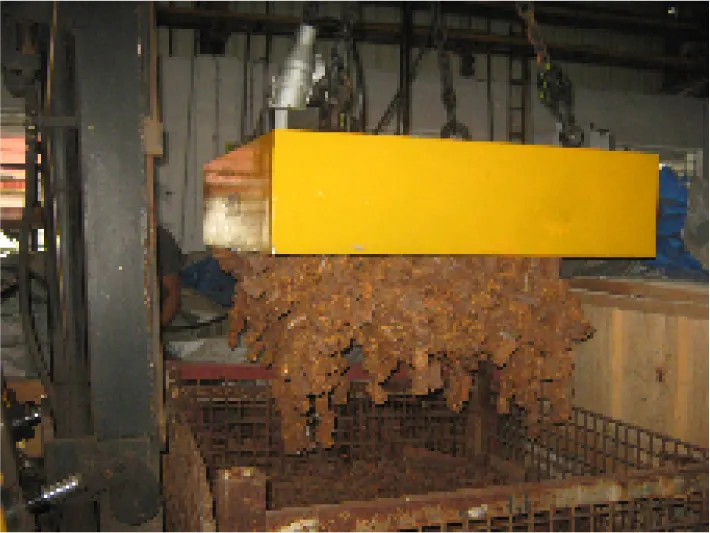

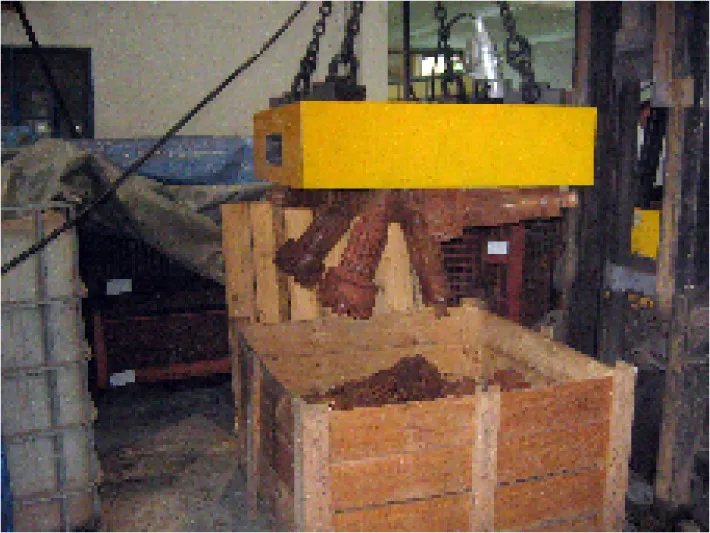

This special type of Electromagnetic Lifter is used for especially for SCRAP LIFTING. This device is requires a continues D. C. power supply for energized (ON). The effectiveness of a lifting capacity is varies due to its contact area of a scrap; you can observe the following photographs to understand this term.
Construction of Electromagnetic Lifter
- Overall body :- Fabricated using High Permeability Steel.
- Conductor : Enamelled Copper / Aluminium wire.
- Class of Insulation - Copper wire
- Class of Insulation : H class
- Winding Base - FRP Former
- Input : Powers supply required:- 415V 3PH,50,HZ AC supply.
- Output : Operating voltage: 220V D. C. supply.
- Operating Through : Operating Pendent.
Characteristics of Control Panel
- Input : Powers supply required : 415V 3PH, 50, HZ AC supply
- Output : Operating voltage : 220V D. C. Supply
- Rectifier :- 3Phase bridge of silicon diodes
- Panel safety Precaution : Using Fuses on AC & DC supply
- Indication : Using 3 Indicator Bulbs Red Yellow Blue(RYB)
Performance of Lifter
The effectiveness of a lifting capacity varies due to its contact with lifting object Example: If lifter having 100% contact area with lifting object and it capable to lift 10 Tons solid load lifting capacity it can be perform 5 to 10% ( 500 to 1000kg approximate ) of total lifting capacity. Use magnet on 50% duty cycle.
Operation Sequence ( Follow-up the steps )
- Install a Control Panel on a crane or nearby location.
- Provide external A.C. Supply to the control panel.
- Connect Control panel with a Lifter & Operating Pendent.
- Hang this whole assembly with a crane hook.
- Align the lifter on a lifting object properly.
- Push Magnet “ON” button on operating pendent for energizing of lifter.
- Lift the scrap of a recommended height.
- Carry it to a desired place with minimum height.
- After reaching to a desire place, push Magnet “OFF” button on operating pendent for de-energizing of a lifter.
Scope of supply
- Electromagnetic Lifter
- Control Panel ( Rectifier unit )
- Operating Pendent.
Accessories
- Cable Drum
- Flexible Cables
- Cable carriers,
- Wire Rope for Cable carriers.
- Clamps for wire Rope
- Control panel unit consisting electrical spares.
Available Sizes
| Code No. | Size ( L x W x H ) | Lifting Capacity | Self Wt. ( Approx. ) |
| 011-04-01 | 1000 x 1000 x 250 mm | 10,000 kg | 2000 kg. |
