Circular Shape Electromagnetic Lifter for Scrap Lifting

We are Manufacturer, Supplier, Exporter of Electromagnetic Lifters for Scrap Lifting, Circular Electromagnetic Lifter for Scrap Lifting and our setup is situated in Pune, Maharashtra, India.

Application

This special type of Electromagnetic Lifter is used for especially for SCRAP LIFTING. This device is requires a continuous D.C. power supply for energized (ON). The effectiveness of lifting capacity is varying due to its contact area of a scrap; you can observe the following photographs for understand this term.

Construction of Electromagnetic Lifter

  1. Overall body : Fabricated, using High Permeability Steel
  2. Conductor : Enameled Copper wire.
  3. Class of Insulation : H class
  4. Winding Base : FRP Former
  5. Input : Powers supply required :- 415V 3PH, 50, HZ AC supply.
  6. Output : Operating voltage :- 220V D. C. supply.
  7. Operating Through : Operating Pendent.

Characteristics of Control Panel

  1. Input : Powers supply required : 415V 3PH, 50, HZ AC supply
  2. Output : Operating voltage : 220V D. C. Supply
  3. Rectifier : 3Phase bridge of silicon diodes
  4. Panel safety Precaution : Using Fuses on AC & DC supply
  5. Indication : Using 3 Indicator Bulbs Red Yellow Blue(RYB)

Performance of Lifter : The effectiveness of lifting capacity is varying due to its contact with lifting object Example: If lifter having 100% contact area with lifting object and it capable to lift 10 Tons solid load lifting capacity it can be perform 5 to 10% ( 500 to 1000kg approximate ) effective for scrap lifting because uneven contact area of scrap with magnetic lifter.

Operation Sequence (Follow-up the steps)

  1. Install a Control Panel on a crane or nearby location.
  2. Provide external A.C. Supply to the control panel.
  3. Connect Control panel with a Lifter & Operating Pendent.
  4. Hang this whole / total assembly with a crane hook.
  5. Align the lifter on a lifting object properly.
  6. Push Magnet “ON” button on operating pendent for energizing of lifter.
  7. Lift the scrap of a recommended height.
  8. Carry it to a desired place with minimum height.
  9. After reaching to a desire place, push Magnet “OFF” button on operating pendent for de-energizing of lifter.

Scope of supply

  1. Electromagnetic Lifter
  2. Control Panel (Rectifier unit)
  3. Operating Pendent.

    4. Accessories

    1. Cable Drum
    2. Flexible Cables
    3. Cable carriers,
    4. Wire Rope for Cable carriers.
    5. Clamps for wire Rope
    6. Electrical parts which is consist in Control panel.

Available Sizes

Code No. Size (Lx WxH) Lifting Capacity Self Wt. (Approx.)
011-03-01 Dia. 700 x H250 mm 7,000 kg 800 kg.
011-03-02 Dia. 1000 x H200 mm 10,000 kg 1600 kg.
011-03-03 Dia. 1400 x H250 mm 15,000 kg 3000 kg.
011-03-04 Dia. 1600 x H250 mm 17,000 kg 4000 kg.
011-03-05 Dia. 1900 x H250 mm 20,000 kg 6000 kg.
Electro Permanent Magnetic Chucks for Milling Operation

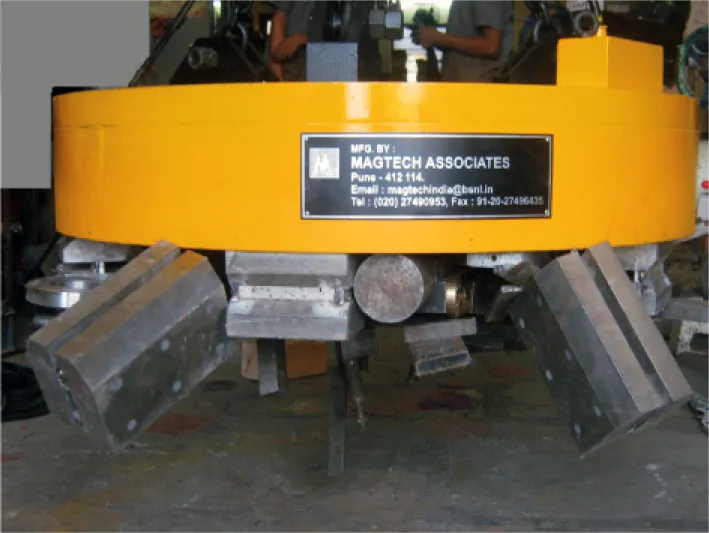

Metal Parts Lifting
Electro Permanent Magnetic Chucks for Grinding Operation

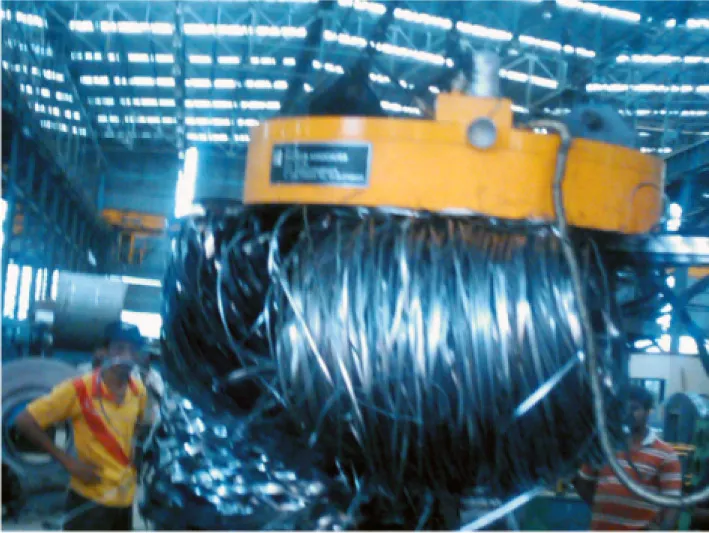

Metal Wire Bundle Lifting
Electro Permanent Magnetic Chucks for Grinding Operation
Metal Wire Bundle Lifting
