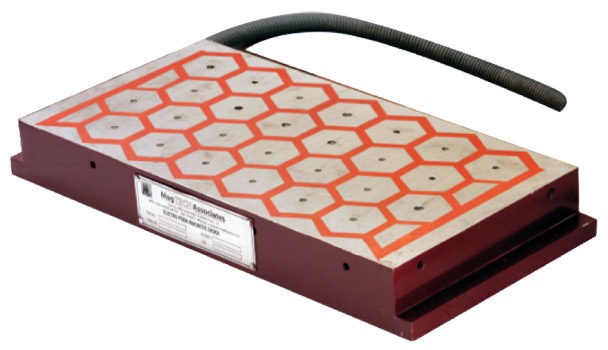

We are Manufacturer, Supplier, Exporter of Electro Permanent Magnetic Chucks - Hexa Poles and our setup is situated in Pune, Maharashtra, India.
Application
EPM Chucks are designed to overcome the demerits of conventional chucks. Especially it is made for the milling operation.
Characteristics
- It requires External Power supply for energized and De-energized (ON-OFF) purpose only, during the operation (machining) power supply is not required absolutely.
- It gives rigid magnetic force, which corresponds to maximum DEPTH of CUT with accuracy.
- It is specially design to avoid mechanical clamping, which result into EASY and QUICK RELEASE of Work Piece from chuck surface.
- Five faces machining can be possible so that time can be saved and productivity can be increased.
- According to the work piece POLE GAP, POLE PITCH, POLE WIDTH, POLE STYLE can be defined.
Construction of EPM Chuck
- Overall body : Fabricated, using High. Permeability Steel
- Seperation of pole: using Epoxy resin
- Conductor : Copper wire.
- Class of Insulation : H Class
- Winding Base - FRP Former
- Bounding : Epoxy potting
- It consist two different characteristics of permanent magnets.
- Operating Through : Operating Pendent.
Inspection
Inspection : Following test are applied to inspect a chuck:
- Resistant to Earth Terminal Test
- De-magnetizing Test
- Test of Pulling force.

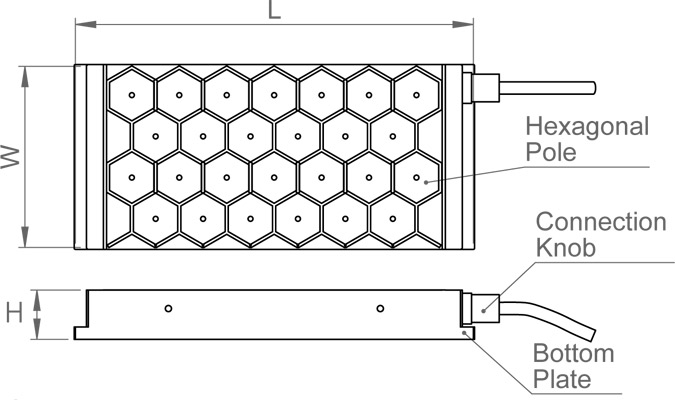

| Model Code | Size ( L x W x H ) | Pole Gap |
| 003-02-01 | 470 x 250 x 65mm | 15mm |
| 003-02-02 | 650 x 350 x 65mm | 15mm |
| 003-02-03 | 1000 x 900 x 80mm | 15mm |
Accessories : Require Thyrister Control Impulse Unit for operating above chucks.

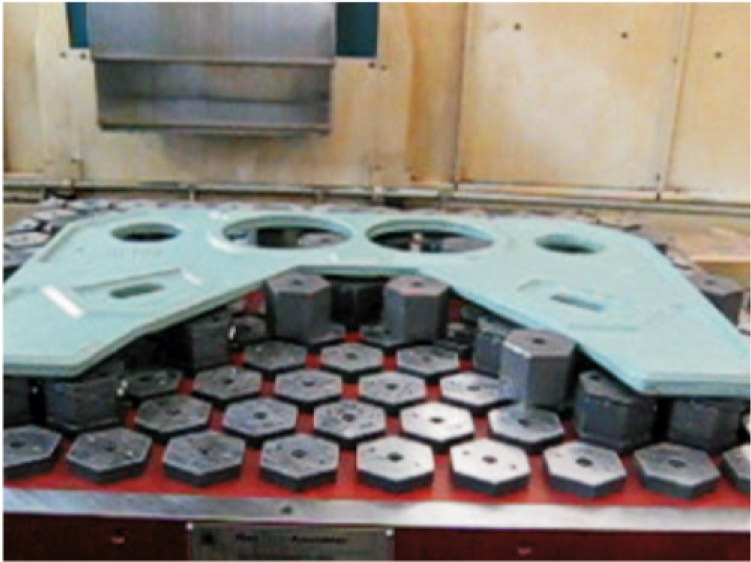

Job Mounted on Chuck

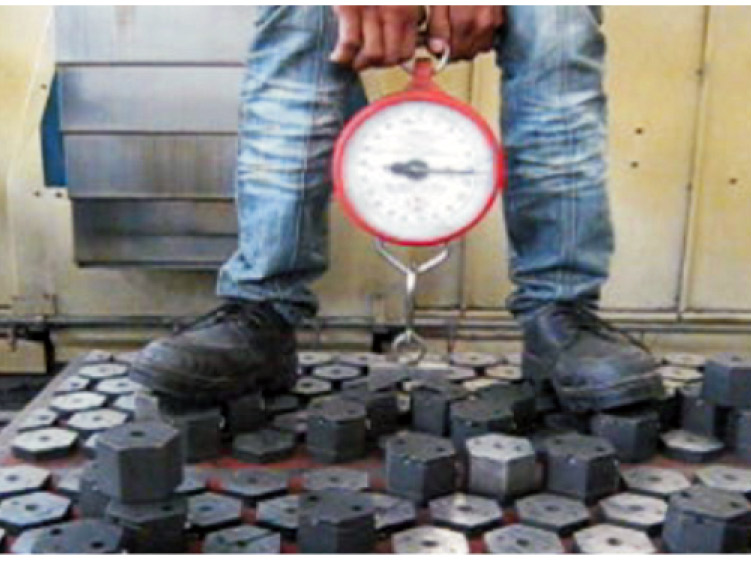

Checking Pulling Force of Chuck
