We are Manufacturer, Supplier, Exporter of Permanent Magnetic Lifters and our setup is situated in Pune, Maharashtra, India.
Application

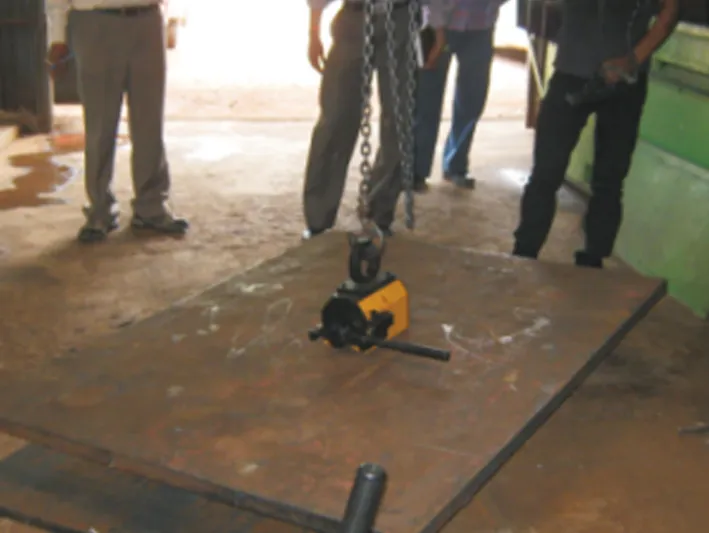

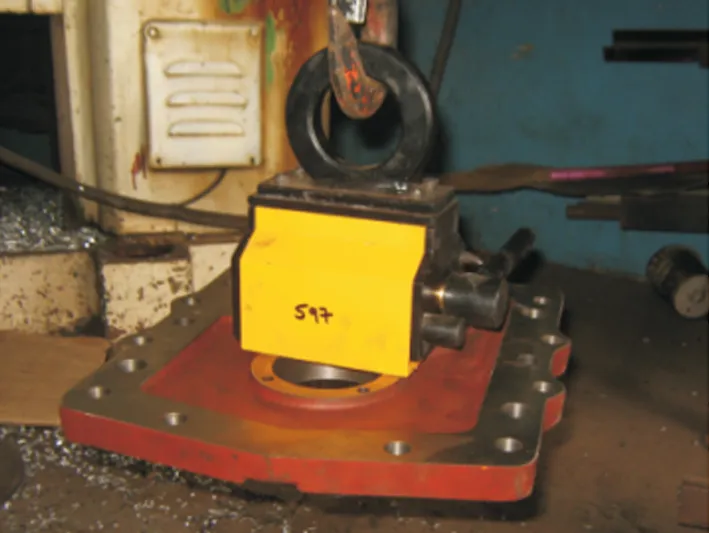

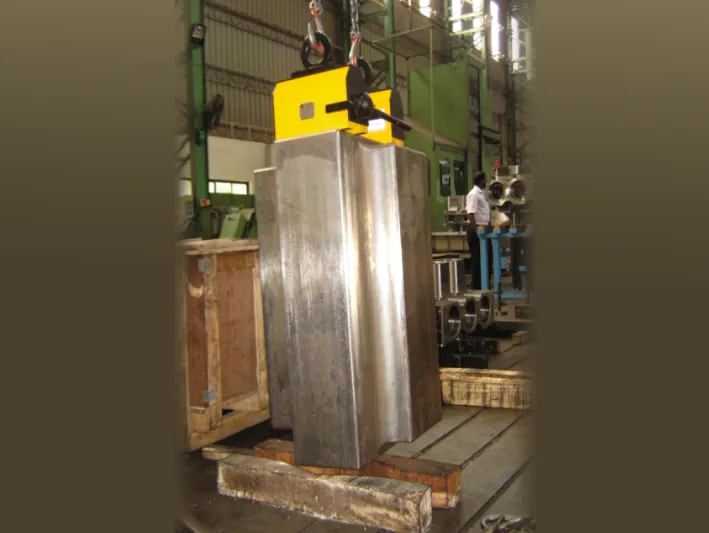

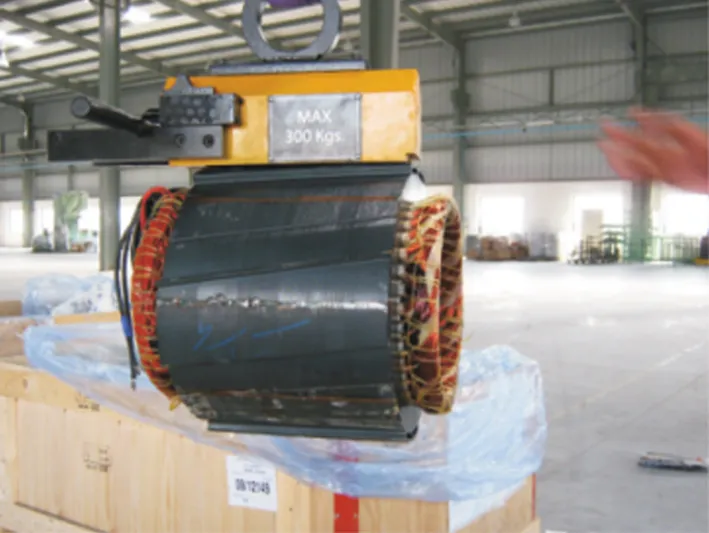

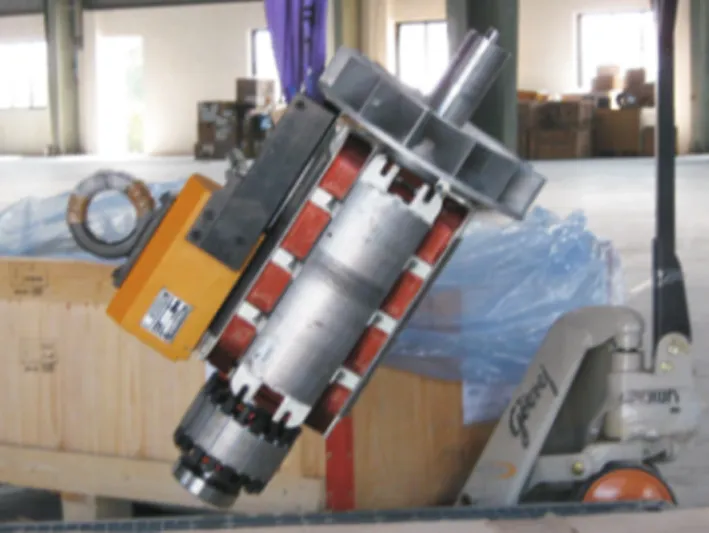

Permanent Magnetic Lifter is a device, for easily handling of a material so that laborious and time consuming work can be avoided. In addition to that, those material which is not having any provision for engaging the crane hook or any similar arrangement, Magnetic lifter is the solution for it. Hence it increases efficiency and productivity.
Characteristics
- These lifters consist of powerful Nd Fe B grade magnets it helps to reduce the self weight and increases lifting capacity of lifters.
- This lifter is operated by simple turn of lever for energize & de-energize ( ON-OFF ), no external power is required.
- We provide three times factor of safety in it, which means, if lifter is recommended for 100 kg weight lifting capacity it has been tested for 300 kg lifting capacity.
- The 1:3 safety factor of recommended load. Test load ensures optimal working conditions even with substantial operating air gaps.
Operating Instructions
- Permanent Magnetic Lifter is used for any ferrous material.
- The magnetic Field is controlled by ON / OFF position of the handle / lever.
- In "OFF" position, the handle is reset on the stopper to provide a total magnetic circuit will be short within the lifter body
- In "ON" position, the handle is rotated clockwise through 180 degree so that concentrated magnetic field is produced and transfer to the job through the poles.
- To release load, turn the handle anticlockwise or in reverse direction for de-activing the magnetic field.
Spares
- All the spares like magnetic assembly, handle, safety lock assembly, stoppers, hook etc. are available so that the lifter never in scrap (unused) conditions by wants of these spares.
Precautions
- Lifter must be used only for that application which has been made.
- Do not lift weight beyond recommended lifting capacity.
- Assure the contact area and balance while lifting.
- Do not try to lift very HOT jobs.
- Magnetic faces should keep clean and dent free.
- When lifter is not in use for long period apply a grease OR oil on magnetic faces it avoid to rusting of it.
- It is recommended to test load at least in a year so that it confirm the lifting capacity and life of spares.
Safety Factors
We provide three times factor of safety in it, which means, if lifter is recommended for 100 kg weight lifting capacity, it has been tested for 300 kg lifting capacity, because practically magnetic face is not cover 100% with lifting object due to its unevenness, scaling, some coating on the job punching, some character or number etc. these all factors are creating GAP between magnetic face and lifting object, hence factor of safety should be considered.
Performance of Lifter

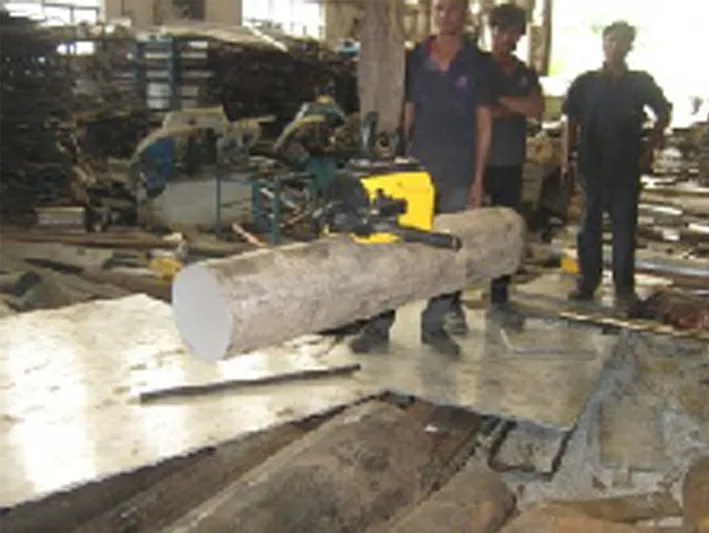

Consider 40% lifting force while lifting round job due to it's line contact. For 100% utilization of recommended capacity, required close contact between magnetic face and lifting object.
Safety Related NORMS

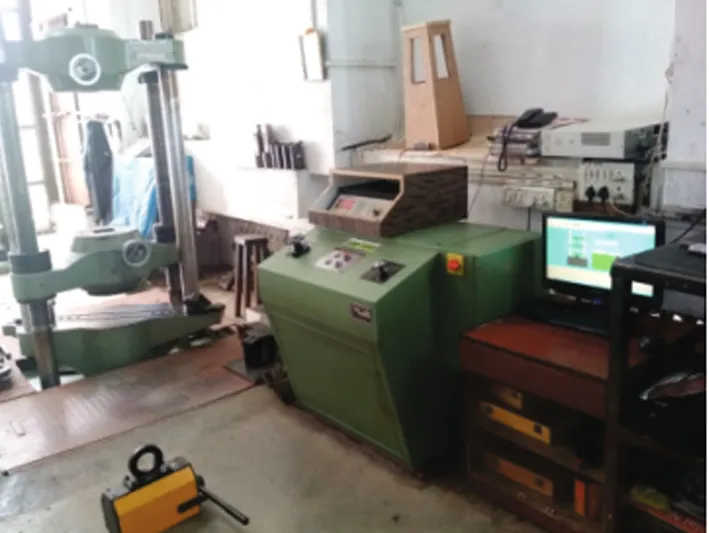

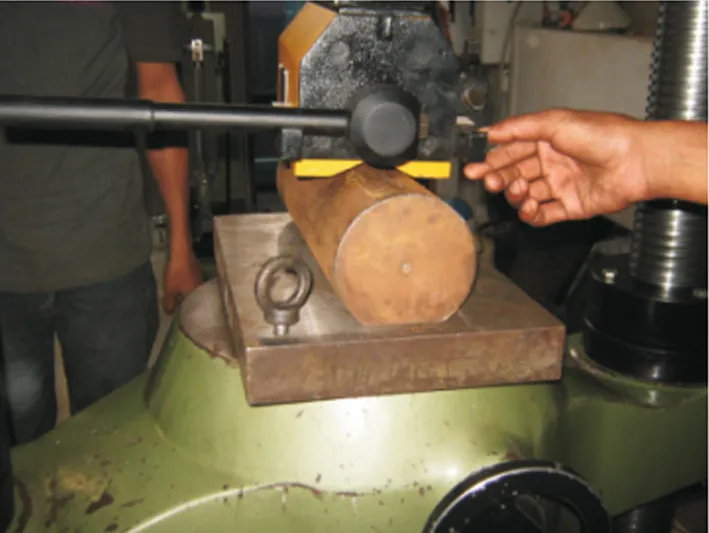

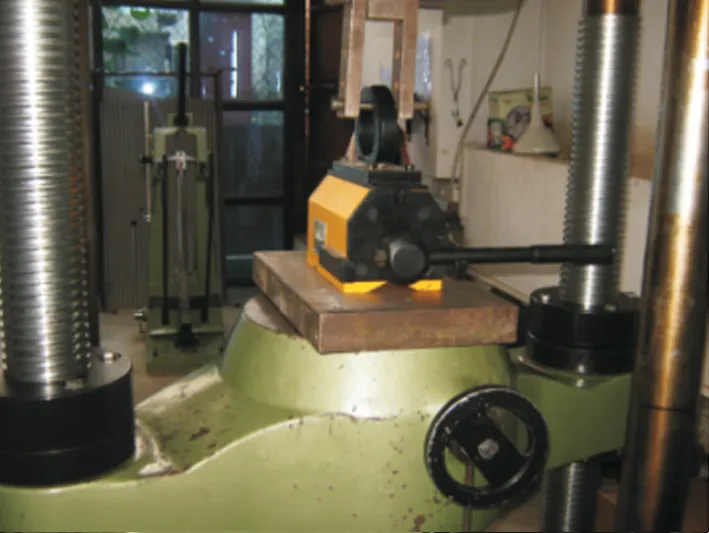

Lifters are checked on Universal Testing Machine (UTM) for load testing. After testing it is certified by the Laboratory and the certificate is provided. Considering three times factor of safety, that means if the lifter is being recommended to lift 100kg, this lifters should be lift 300 kg, at least.
Operation Sequence (Follow-up the steps)
- Hang the lifter with the crane hook.
- Align the lifter on lifting object and confirm whetherthe lifters are aligned properly or not (it should be properly align)
- Turn the lever for energize (ON) it.
- Lift it for 6” height (approximate) and confirm whether its properly lifted or not.
- Carry it to desired place with minimum height from ground level (1 feet height approximate).
- After reaching to desire place, it kept properly and then de-energize (OFF) it.
Note : It is recommended to test load at least in a year so that it confirms the lifting capacity and life of spares.

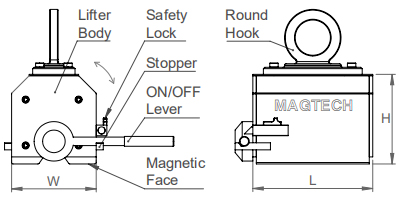

Product Range
| Code No. | Nominal Size ( LxHxW ) | Lifting Capacity | Self Weight (Approx) |
| 010-01-08 | 130 x 120 x 100 mm | 100 kg | 8 kg |
| 010-01-08 | 215 x 110 x 135 mm | 200 kg | 15 kg |
| 010-01-01 | 160 x 115 x 135 mm | 300 kg | 20 kg |
| 010-01-22 | 240 x 115 x 135 mm | 400 kg | 28 kg |
| 010-01-11 | 220 x 135 x 135 mm | 500 kg | 30 kg |
| 010-01-03 | 290 x 135 x 135 mm | 600 kg | 32 kg |
| 010-01-05 | 305 x 140 x 180 mm | 1000 kg | 55 kg |
| 010-01-06 | 450 x 160 x 180 mm | 1500 kg | 85 kg |
| 010-01-23 | 520 x 160 x 180 mm | 2000 kg | 120 kg |
