We are Manufacturer, Supplier, Exporter of Circular Electro Magnetic Chucks and our setup is situated in Pune, Maharashtra, India.
Application
Electromagnetic Chucks are designed for GRINDING operations. It generates a strong magnetic force to hold work piece in a rigid manner. These chucks are operated on a continues D.C. Power Supply. There is no internal wear and deformation corresponding to movement of internal parts, which provides a better life than conventional Permanent Magnetic Chuck. These chuck requires slipering arrangement for external power supply to operating it.
Construction of Electromagnetic Chuck
- Overall body : Fabricated, using High Permeability Steel & Brass.
- Seperation of pole: using brass strips.
- Conductor : Enameled Copper wire
- Class of Insulation : F / H class.
- Winding Base : FRP Former
- Bounding : Epoxy potting
- It operates on a continuous D.C. supply
- Operating Through : Operating Pendent
Characteristics of Control Panel
- Input : Powers supply required : 230 V A.C. supply
- Output : Operating voltage : 110V D. C. Supply
- Panel safety Precaution : Using Fuses on AC supply, DC supply and MCB.
- Indication : Using Indication for main suppy, Magnet ON and demag cycle.
Inspection
Following tests are applied to inspect a chuck
- Resistant to Earth Terminal Test
- De-magnetizing Test
- High Voltage Test
- Leak Proof Test
- Slipping force Test as per IS : 8710 - 1978
Available Sizes

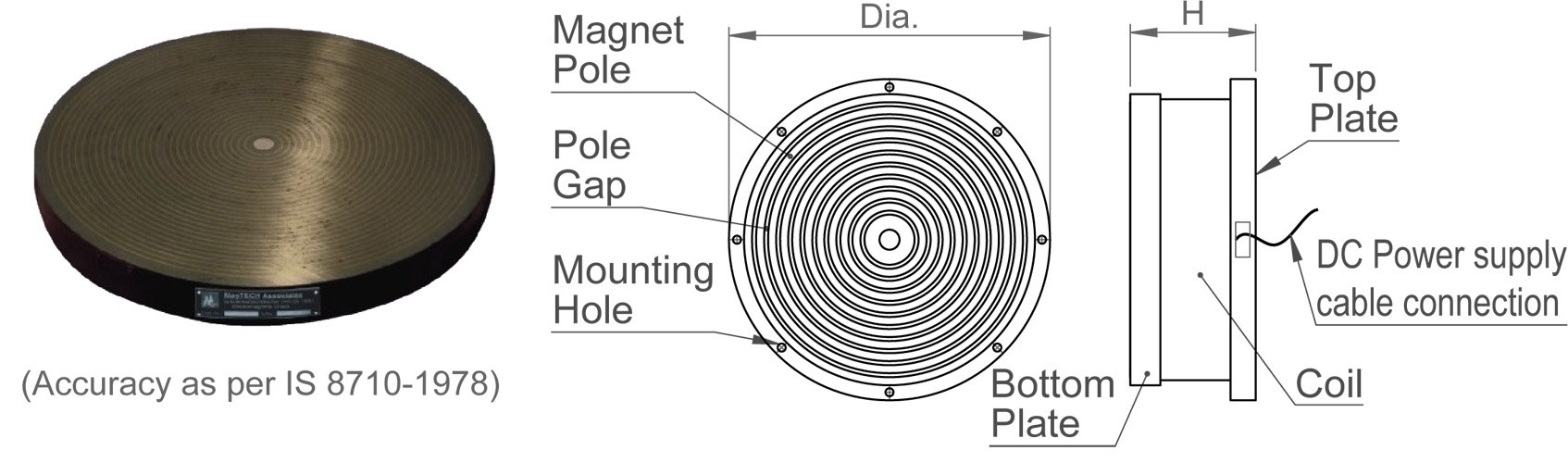

| Model Code | Size Dia. x H) | Pole Gap | Pole Pitch |
| 002-05-01 | Dia. 300 x 100 mm | 4mm | 14mm |
| 002-05-02 | Dia. 400 x 100 mm | 4mm | 14mm |
| 002-05-03 | Dia. 600 x 100 mm | 4mm | 14mm |
| 002-05-04 | Dia. 750 x 125 mm | 4mm | 14mm |
| 002-05-05 | Dia. 1000 x 125 mm | 4mm | 14mm |
| 002-05-06 | Dia. 1200 x 125 mm | 4mm | 14mm |
Accessories
Require D.C. Power supply unit and slip Ring Arrangement for operating above chucks.
