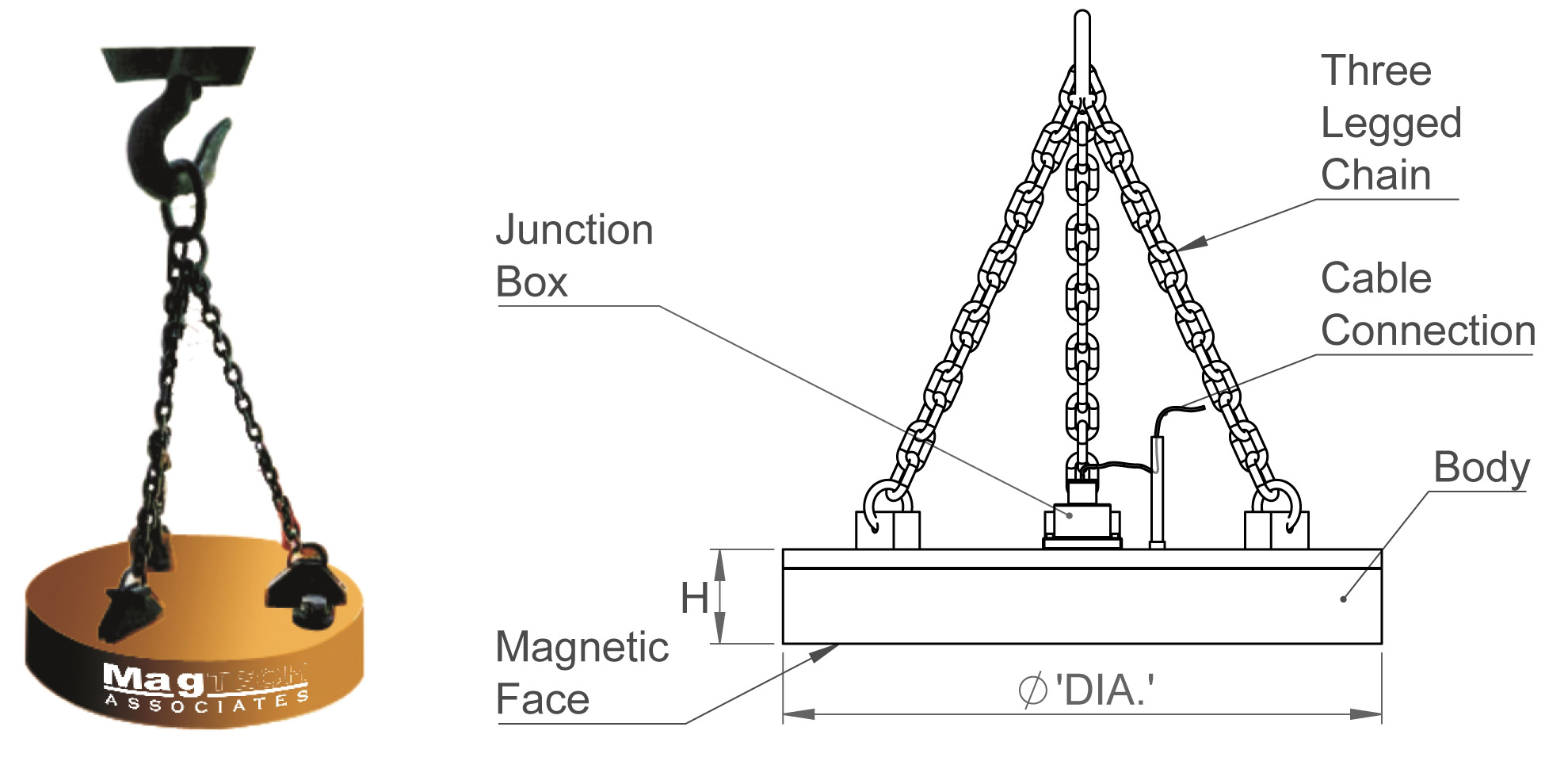

Electromagnetic Lifters for Scrap Lifting (Circular)

electro-magnetic-lifter

We are Manufacturer, Supplier, Exporter of Electromagnetic Lifters for Scrap Lifting, Circular Electromagnetic Lifter for Scrap Lifting and our setup is situated in Pune, Maharashtra, India.

Application
This special type of Electromagnetic Lifter is used for especially for SCRAP LIFTING. This device is required continues D.C. power supply for energized (ON). The effectiveness of lifting capacity is varying due to its contact area of scrap; you can observe the following photographs for understand this term.


Characteristics of Electromagnetic Lifter

  • Construction : Fabricated body using High Permeability Steel.
  • Conductor : Copper wire.
  • Class of Insulation : Copper wire
  • Class of Insulation : H class
  • Winding Base : FRP Former
  • Input : Powers supply required :- 415V 3PH, 50, HZ AC supply.
  • Output : Operating voltage :- 220V D. C. supply.
  • Operating Through : Operating Pendent.

Characteristics of Control Panel

  • Input : Powers supply required : 415V 3PH, 50, HZ AC supply
  • Output : Operating voltage : 220V D. C. Supply
  • Rectifier : 3Phase bridge of silicon diodes
  • Panel safety Precaution : Using Fuses on AC & DC supply
  • Indication : Using 3 Indicator Bulbs Red Yellow Blue(RYB)

Performance of Lifter : The effectiveness of lifting capacity is varying due to its contact with lifting object Example: If lifter having 100% contact area with lifting object and it capable to lift 10 Tons solid load lifting capacity it can be perform 5 to 10% ( 500 to 1000kgs approximate ) effective for scrap lifting because uneven contact area of scrap with magnetic lifter.

Operation Sequence (Follow-up the steps)

  • Installed Control Panel on crane or nearby location.
  • Provide external A.C. Supply to the control panel.
  • Connect Control panel with Lifter & Operating Pendent.
  • Hang this assembly with crane hook.
  • Align the lifter on lifting object properly.
  • Push Magnet “ON” button on operating pendent for energizing of lifter.
  • Lift the scrap of recommended height.
  • Carry it to desired place with minimum height.
  • After reaching to desire place, push Magnet “OFF” button on operating pendent for de-energizing of lifter.

Scope of supply

  • Electromagnetic Lifter
  • Control Panel (Rectifier unit)
  • Operating Pendent.

Accessories

  • Cable Drum
  • Flexible Cables
  • Cable carriers,
  • Wire Rope for Cable carriers.
  • Clamps for wire Rope
  • Electrical parts which is consist in Control panel.

Available Sizes

Code No. Size (Lx WxH) Lifting Capacity Self Wt. (Approx.)
011-03-01 Dia. 700 x H250 mm 7,000 Kgs 800 Kgs.
011-03-02 Dia. 1000 x H200 mm 10,000 Kgs 1600 Kgs.
011-03-03 Dia. 1400 x H250 mm 15,000 Kgs 3000 Kgs.
011-03-04 Dia. 1600 x H250 mm 17,000 Kgs 4000 Kgs.
011-03-05 Dia. 1900 x H250 mm 20,000 Kgs 6000 Kgs.

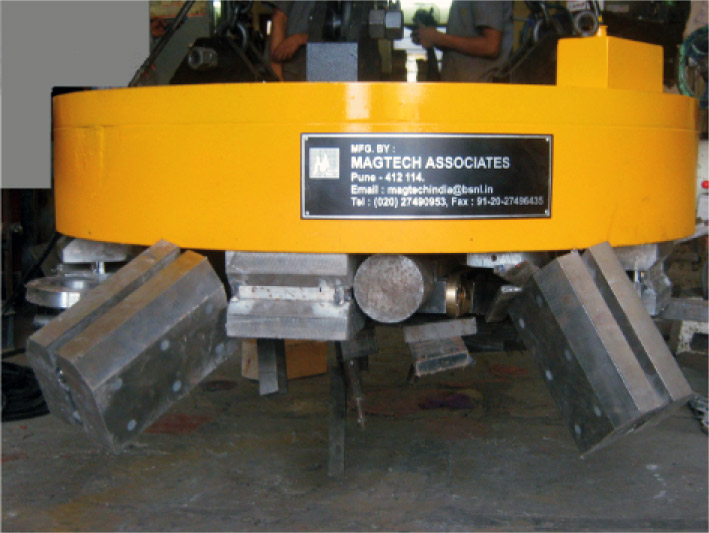

Metal Parts Lifting

electro-magnetic-lifter-for-scrap

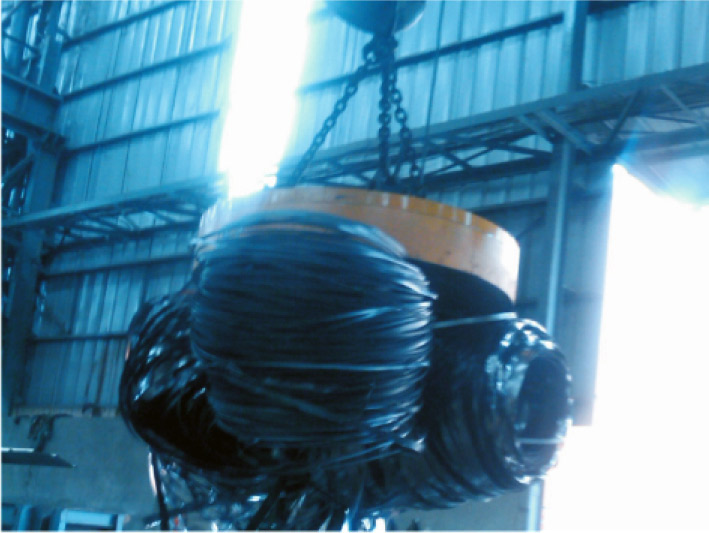

Metal Wire Bundle Lifting

electro-magnetic-lifter-for-scrap

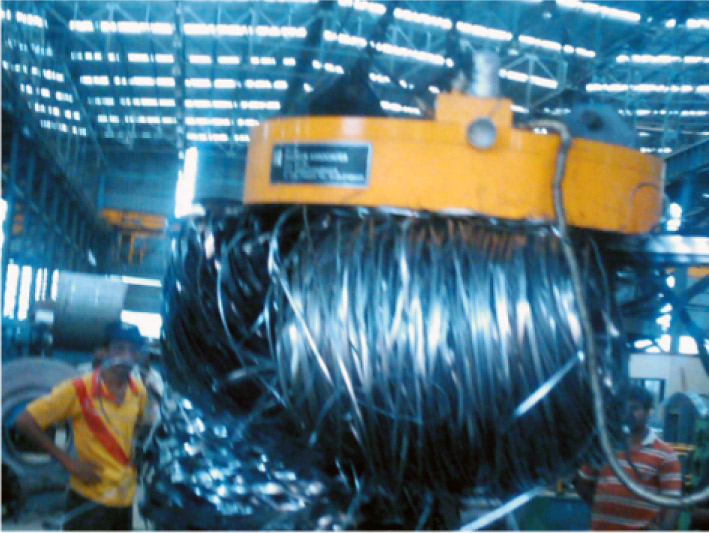

Metal Wire Bundle Lifting

electro-magnetic-lifter-for-scrap


request-quote1

pdf

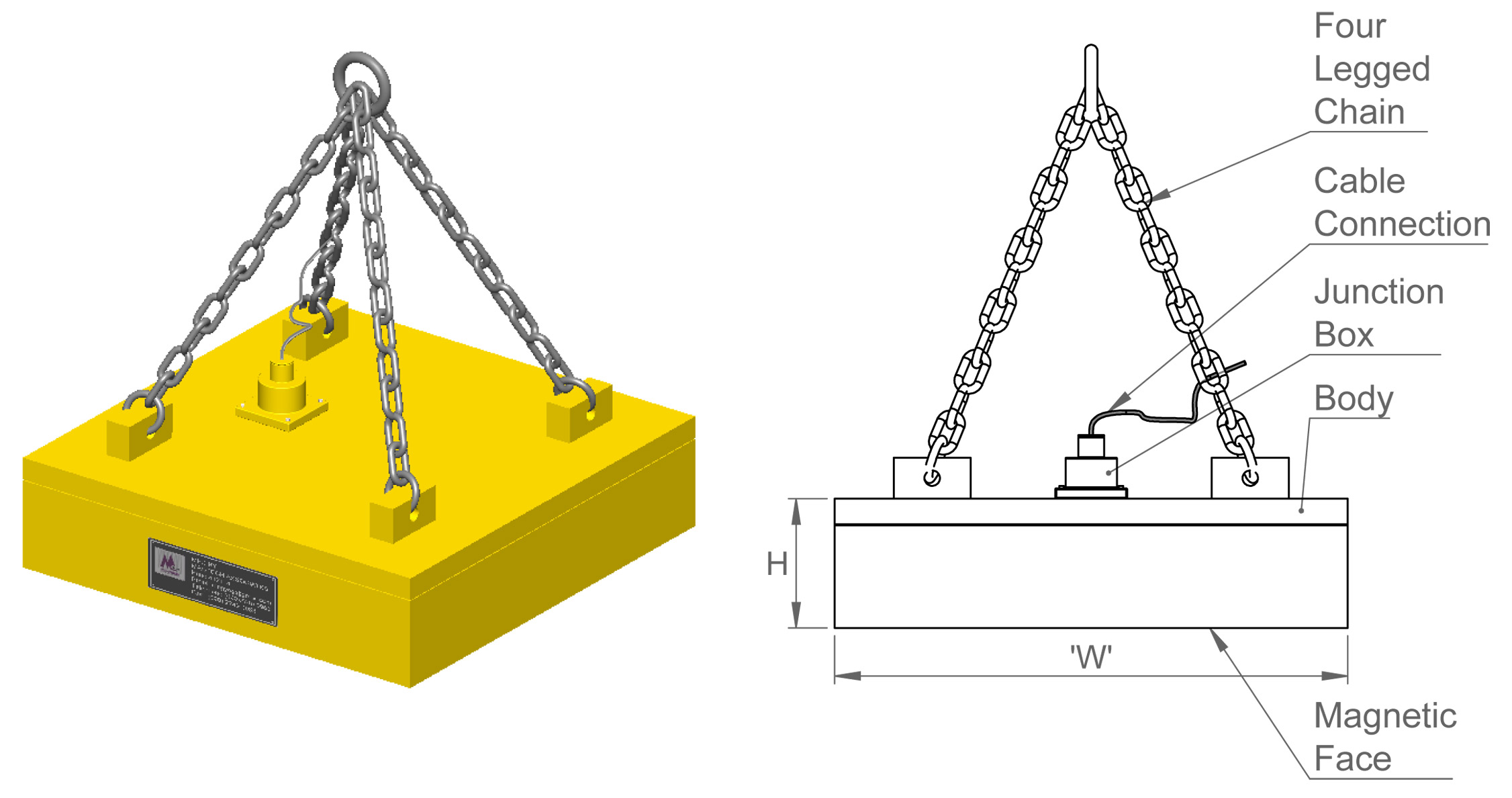

Electromagnetic Lifter for Scrap Lifting (Sqaure)

electro-magnetic-lifter-for-scrap-sqaure

Application
This special type of Electromagnetic Lifter is used for especially for SCRAP LIFTING. This device is required continues D. C. power supply for energized (ON).

Characteristics of Electromagnetic Lifter

  • Construction:- Fabricated body using High Permeability Steel.
  • Conductor : Copper wire.
  • Class of Insulation - Copper wire
  • Class of Insulation : H class
  • Winding Base - FRP Former
  • Input : Powers supply required:- 415V 3PH,50,HZ AC supply.
  • Output : Operating voltage: 220V D. C. supply.
  • Operating Through : Operating Pendent.

Characteristics of Control Panel

  • Input : Powers supply required : 415V 3PH, 50, HZ AC supply
  • Output : Operating voltage : 220V D. C. Supply
  • Rectifier :- 3Phase bridge of silicon diodes
  • Panel safety Precaution : Using Fuses on AC & DC supply
  • Indication : Using 3 Indicator Bulbs Red Yellow Blue(RYB)

Performance of Lifter
The effectiveness of lifting capacity is varying due to its contact with lifting object Example: If lifter having 100% contact area with lifting object and it capable to lift 10 Tons solid load lifting capacity it can be perform 5 to 10% ( 500 to 1000kgs approximate ) effective for scrap lifting because uneven contact area of scrap with magnetic lifter.


Operation Sequence ( Follow-up the steps )

  • Installed Control Panel on crane or nearby location.
  • Provide external A.C. Supply to the control panel.
  • Connect Control panel with Lifter & Operating Pendent.
  • Hang this assembly with crane hook.
  • Align the lifter on lifting object properly.
  • Push Magnet “ON” button on operating pendent for energizing of lifter.
  • Lift the scrap of recommended height.
  • Carry it to desired place with minimum height.
  • After reaching to desire place, push Magnet “OFF” button on operating pendent for de-energizing of lifter.

Scope of supply

  • Electromagnetic Lifter
  • Control Panel ( Rectifier unit )
  • Operating Pendent.

Accessories

  • Cable Drum
  • Flexible Cables
  • Cable carriers,
  • Wire Rope for Cable carriers.
  • Clamps for wire Rope
  • Electrical parts which is consist in Control panel.

Available Sizes

Code No. Size ( L x W x H ) Lifting Capacity Self Wt. ( Approx. )
011-04-01 1000 x 1000 x 250 mm 10,000 Kgs 2000 Kgs.

Applications

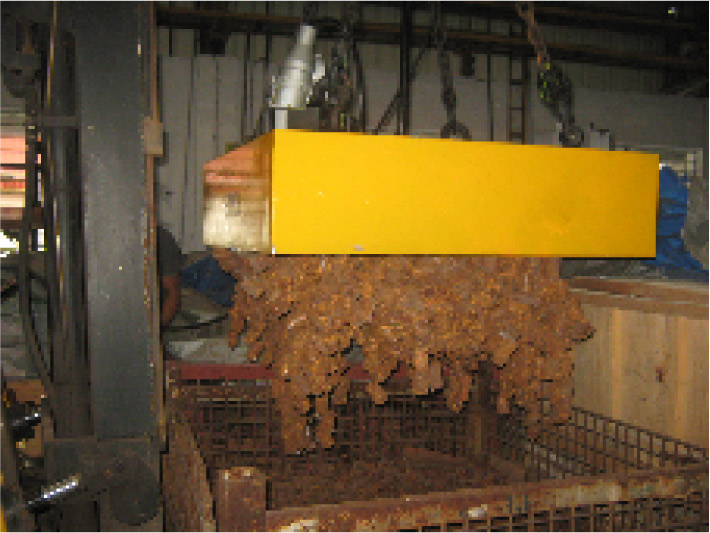

Pipes Pieces Handling

Pipes Pieces Handling

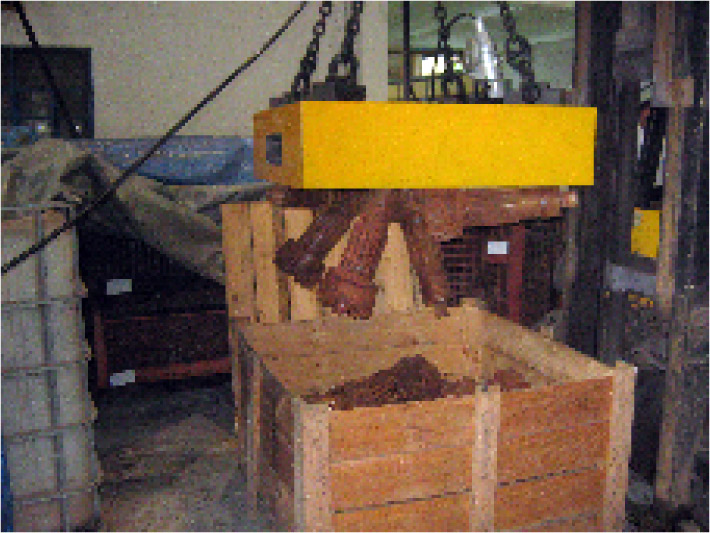

Machined Parts Handling

Machined Parts Handling

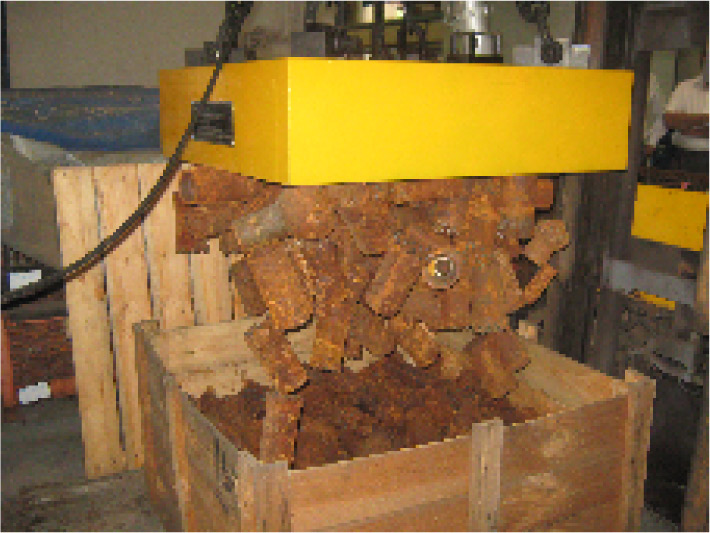

Loose Parts Lifting

Loose Parts Lifting


request-quote1

pdf
